適用范圍：

主要適用于機場、公檢院系統、監獄、看守所、戒毒所、保密機構、部隊、大型賽事、演唱會、重要會議、政府機關、反恐領域等重要地點、設施，需要空間保密、無人機管控的地域。

Scope of application:

Mainly applicable to airports, public prosecution system, prisons, detention centers, drug rehabilitation centers, confidential institutions, troops, large events, concerts, important meetings, government agencies, anti-terrorism field and other important locations, facilities, the need for space secrecy, drone control of the territory.

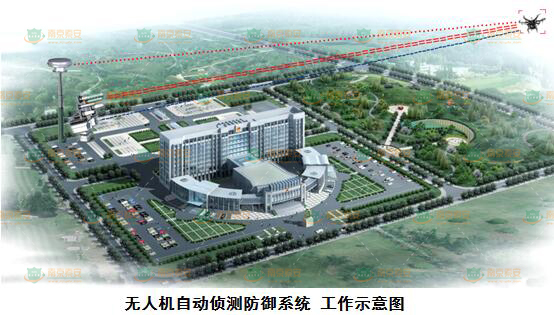

無人機防御工作原理:

系統首先通過無線電偵測測向子系統對非法入侵無人機進行自動搜索、發現、識別和測向，同時啟動光電偵測跟蹤子系統對目標進行光學確認、定位并鎖定跟蹤，最后啟動無線電干擾子系統對無人機測控和導航信號進行強電干擾阻斷，迫使無人機降落或返航。系統采用多種技術手段和7×24小時不間斷工作方式，實現了對非法入侵無人機的多鑒、多維、全天時、全天候自動監測和防御，單站防護面積近80平方公里（防護半徑大于5公里，無遮擋區域）。

Working principle of UAV defense:

The system first automatically searches, discovers, identifies and orientates the illegal invading drones through the radio detection and direction finding subsystem, while starting the photoelectric detection and tracking subsystem to optically confirm, locate and lock the target, and finally starting the radio interference subsystem to block the UAV measurement and navigation signals with strong electrical interference, forcing the UAV to land or return. The system adopts a variety of technical means and 7×24 hours non-stop working mode, realizing multi-discovery, multi-dimensional, all-day, all-weather automatic monitoring and defense of illegal invasion drones, with a single station protection area of nearly 80 square kilometers (protection radius greater than 5 kilometers, no blocking area).

本系統采用可搬移式結構設計，設備裝拆簡單，部署靈活，開設快捷，特別適宜于在重大活動中對非法入侵無人機的監測防御。

UAV defense features.

Innovative development of advanced special receivers for UAV monitoring and high-speed signal processing equipment to achieve detection reception and processing of broadband, frequency hopping and other types of UAV signals, which can quickly capture and identify long-range faint UAV signals;

Innovative development of high-gain, low-noise UAV monitoring directional antenna array, which greatly enhances the monitoring sensitivity of the system and effectively improves the detection and defense range;

Adopting various technical means such as radio and photoelectricity to make the target identification more accurate and effective and the detection and defense capability stronger;

Designing all-day, all-weather and unattended automatic working mode, which is essential for seamless all-day security protection of special key units and important areas;

The system adopts a removable structure design, with simple equipment installation and disassembly, flexible deployment and quick opening, which is especially suitable for monitoring and defense of illegal invasion drones in major events.

采用拒止工作模式，系統可對指定空域或指定半徑全周空域進行無線電干擾，阻止所防御區域內的無人機起飛或從外界侵入。

The main functions of UAV defense:

Automatic and rapid detection discovery, identification and direction finding and positioning of UAV signals;

Measurement, display and recording of the frequency spectrum and operating parameters of UAV signals;

Automatic identification of drone models;

Application of visible, infrared laser and thermal induction trispectral surveillance technologies for target identification, confirmation and locking tracking;

Precise and strong electrical interference with UAV telemetry (downlink), remote control (uplink) and satellite navigation signals;

Automatic alerting of UAV targets upon discovery and automatic forensic recording of radio signals and images;

Radio jamming can be done in two ways: manual jamming (artificially initiated jamming) or automatic jamming (automatically initiated jamming after discovery). Interference with satellite navigation signals shall be in the form of manual interference;

Adopting the denial working mode, the system can radio jam the designated airspace or the designated radius full circumference airspace to prevent the UAV in the defended area from taking off or intruding from outside.

無人機防御系統參數:

1)監測頻率范圍：  20MHz～6GHz內無人機工作頻段

2)無線電監測范圍: 半徑＞5km，增配輔助監測站時范圍可擴展

3)光電監視范圍：  半徑＞2km（搜索式監視）, 半徑＞5km（引導式監視）

4)無線電干擾范圍: ＞5km，增配輔助干擾站時范圍可擴展

5)監測響應時間：  2s

6)監測防御時間：  7×24h（包括晝夜、全氣候，不間斷）

7)設備總重量：    150Kg （不含輔助安裝設備）

8)最大輸出功率：  380W

9)最大功耗：      1600W

10)供電：         AC220/10A

11)監測防御方式： 全自動，無人值守

UAV defense system parameters:

1) Monitoring frequency range:     20MHz ~ 6GHz within the UAV working band

2) Radio monitoring range:            Radius＞5km, the range can be extended when additional auxiliary monitoring stations are equipped

3) Photoelectric monitoring range: radius > 2km (search-type monitoring), radius > 5km (guided monitoring)

4) radio interference range:            ＞5km, with additional auxiliary interference station range can be extended

5) monitoring response time:          2s

6) monitoring defense time:            7 × 24h (including day and night, the whole climate, uninterrupted)

7) Total weight of equipment:         150Kg (excluding auxiliary installation equipment)

8) Maximum output power:            380W

9) Maximum power consumption: 1600W

10) Power supply:                           AC220/10A

11) monitoring defense mode:        automatic, unattended

無人機防御適用范圍:

主要適用于機場、公檢院系統、監獄、看守所、戒毒所、保密機構、部隊、大型賽事、演唱會、重要會議、政府機關、反恐領域等重要地點、設施，需要空間保密、無人機管控的地域。

Drone defense applicable scope:

Mainly applicable to airports, public prosecution system, prisons, detention centers, drug rehabilitation centers, confidential institutions, troops, large events, concerts, important meetings, government agencies, anti-terrorism field and other important locations, facilities, the need for space secrecy, drone control of the territory.
