產品介紹：

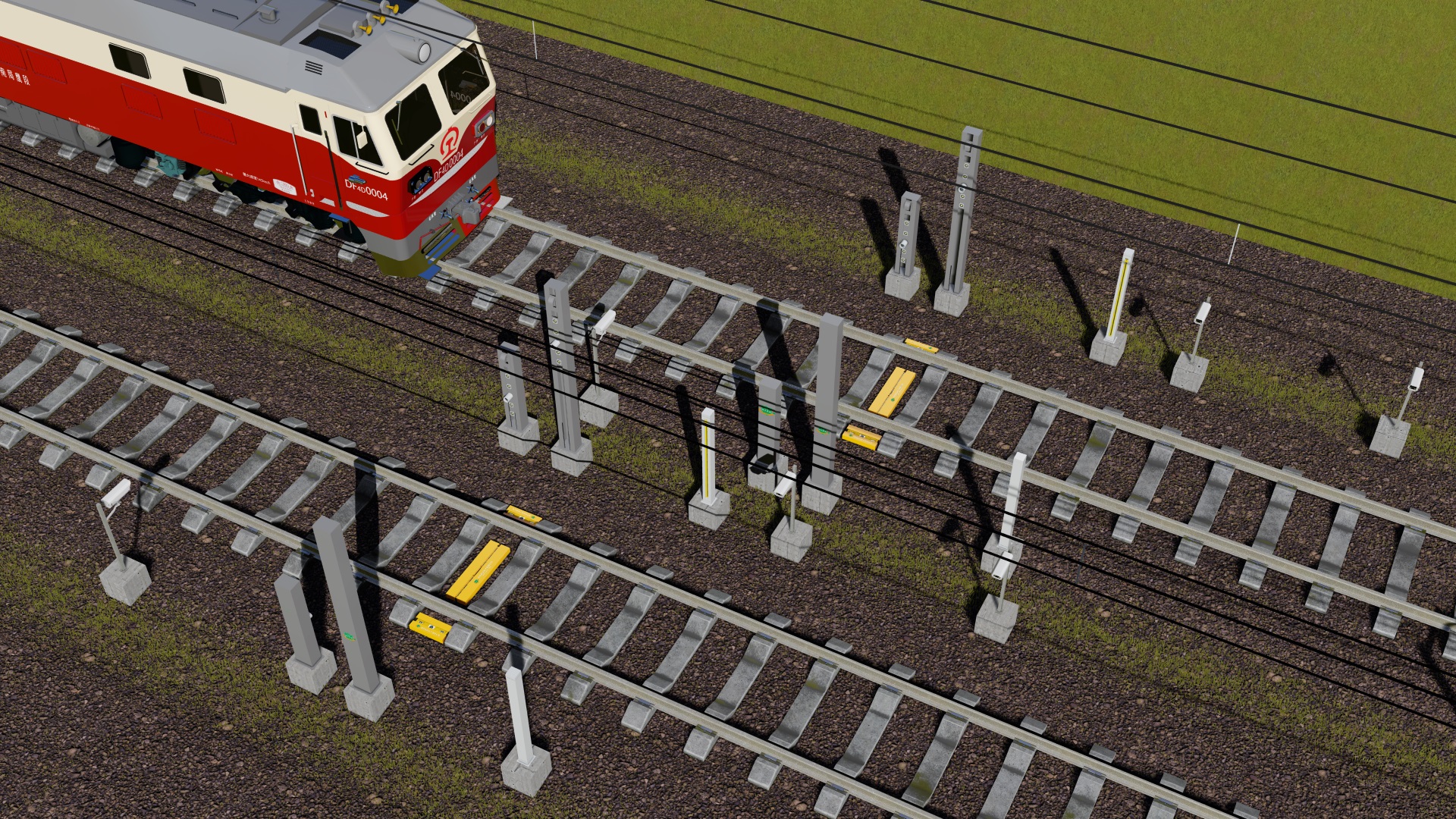

     列車底盤智能檢測系統利用高清彩色線陣掃描、車號識別等技術,對行進中的鐵路貨車進行實時檢測，形成高清彩色圖像,并按車廂進行分割，達到真實還原現場的效果。同時運用深度學習、機器視覺等AI技術,完成車輛問題項的檢測和標注。檢車結束后系統自動生成檢車報告,方便存檔、分析。通過使用本產品，可以解決人工貨檢工作量大、效率低以及傳統視頻貨檢圖像模糊、回放困難、無智能提示等問題。

    本產品率先將人工智能檢測引入列車檢測領域，使檢測作業從“能看到、看得清”升級為“能看懂、會思考",開啟了“機檢”代替“人檢”新時代！

    目前南京索安研發生產的列車掃描系統已獲得多項專利和軟件著作權。并有實戰項目案例，被相關部門認可。

發明專利號：一種列車多面掃描成像檢查系統  2021115899015)

外觀專利號：列車多面掃描成像裝置(TMSS)  2021304824694,

實用專利號：一種車輛頂部掃描裝置  2021232713883,

                    一種匹配車輛高度自動升降的車側掃描儀裝置  2021232727405,

列車多面掃描成像裝置（車底掃描帶自動滑蓋功能）

Product Description:

    The train chassis intelligent detection system uses high-definition color line matrix scanning, car number recognition and other technologies, real-time detection of moving railroad wagons, forming high-definition color images, and segmentation by carriage, to achieve the effect of real restoration of the scene. At the same time the use of deep learning, machine vision and other AI technology, complete the detection and labeling of the vehicle problem items. After the inspection, the system automatically generates the inspection report, which is convenient for archiving and analysis. Through the use of this product, can solve the manual cargo inspection workload, low efficiency and traditional video cargo inspection image blurred, playback difficulties, no intelligent tips and other issues.

    This product is the first to introduce artificial intelligence detection into the field of train inspection, so that the inspection operation from "can see, see clearly" upgraded to "can see, will think", opened the "machine inspection" instead of "human inspection" new era!

At present, the train scanning system developed and produced by Nanjing Suoan has obtained a number of patents and software copyrights. And there are real-world project cases, which are recognized by relevant departments.

Invention Patent No.:      A Train Multi-surface Scanning Imaging Inspection System 2021115899015)

Appearance Patent No.: Train Multi-surface Scanning and Imaging System (TMSS) 2021304824694,

Utility Patent No.:            A Vehicle Top Scanning Device 2021232713883,

                                        A vehicle side scanner device that matches the height of the vehicle for automatic lifting and lowering 2021232727405,

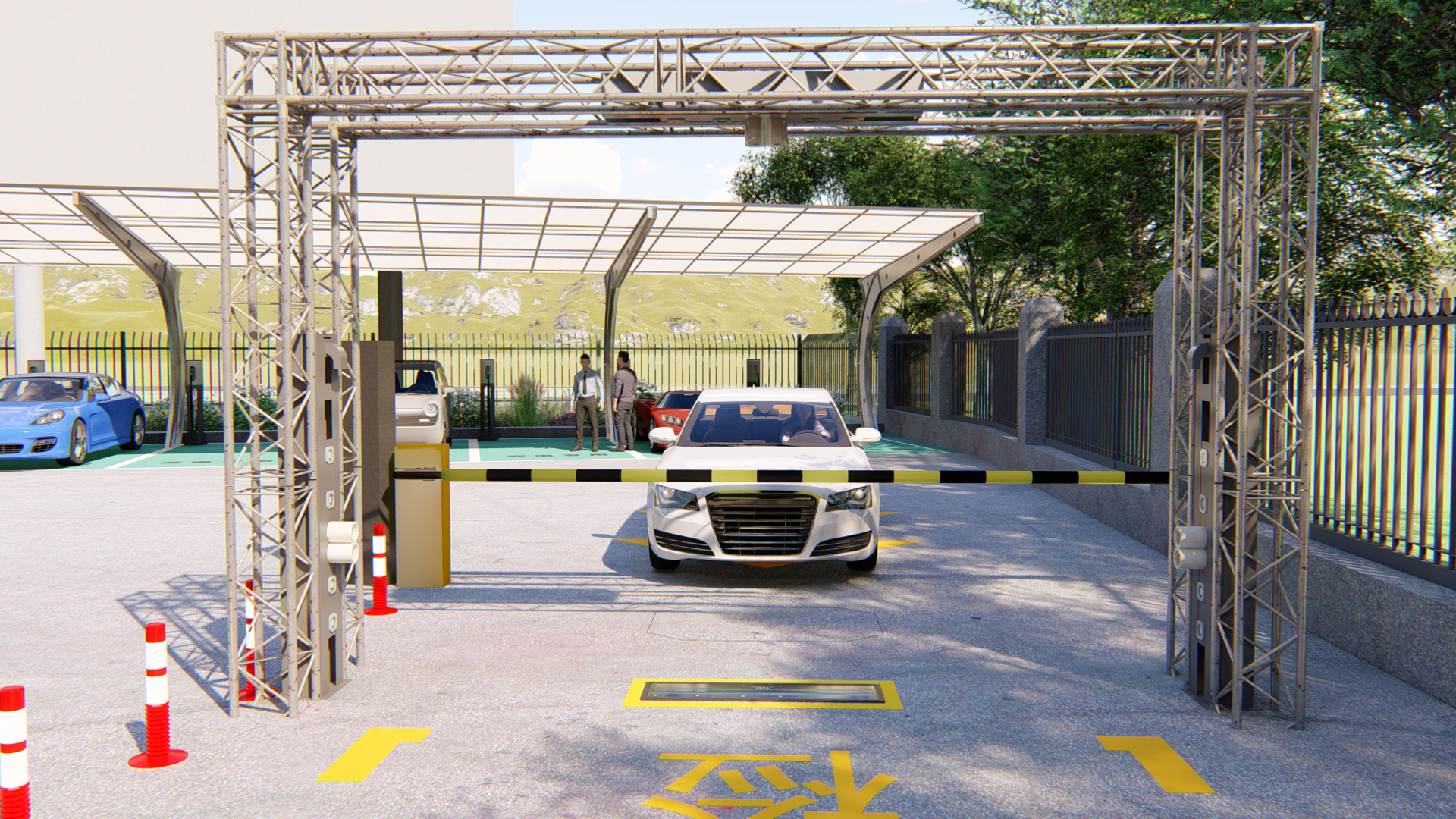

車輛多面掃描成像裝置

應用場景：

海關鐵路口岸反藏匿反偷渡反走私檢查、

列車生產檢測與維修檢查段、

汽車檢測站全車檢查、

車輛租賃等場所車輛品質與行車安全檢查。

Application Scenario：

Anti-hiding, anti-smuggling and anti-smuggling inspections at customs and railroad ports,

Train production inspection and maintenance inspection section,

Vehicle inspection station full vehicle inspection,

Vehicle leasing and other places vehicle quality and driving safety inspection.

功能概述：

1、車輛多側面同時高清全幅完整掃描成像，并同步高清多視角全景監控視頻存檔留證；

2、電動滑軌同步伴隨移動各個車輛側面的圖像采集相機勻速圖像采集，確保掃描圖像完整、4K超高清成像，可檢測0.5mm細微物質或異常特征；

3、配置塵雪探測，可自動加熱與除塵，免受塵雪氣候環境影響；

4、智能全視角車側及車頂補光照明及車側或車頂180度全景成像；

5、配置溫控系統可報警聯動散熱、除霧防冷凝；

6、可集成車牌、車號、箱號等識別，并可支持多個品牌的車底、車牌等采集相機接入，便于系統集成；

7、可采集安檢車道內全景及車頂、車兩側及底盤多路視頻，可智能拍照并關聯保存;

8、可集成安檢人員信息及車輛檢測評估信息并關聯記錄查詢；可啟用智能判圖后異常報警聯動聲光報警等協同工作；

9、可多個車道集成顯示并上傳中央管理平臺；

10、可國產操作系統、嵌入式系統環境下運行；

11、支持多國語言界面切換。

Function overview：

1, the vehicle multi-side simultaneously high-definition full width complete scanning imaging, and synchronous high-definition multi-view panoramic surveillance video archive retention;

2. The electric slide is synchronized with the image acquisition camera on the side of each vehicle for uniform image acquisition to ensure the integrity of the scanned image and 4K ultra-high-definition imaging, which can detect 0.5mm fine substances or abnormal features;

3, equipped with dust and snow detection, can automatically heat and dust, free from the impact of dust and snow climate environment;

4, intelligent full view side and roof lighting and side or roof 180 degree panoramic imaging;

5, the configuration of temperature control system can alarm linkage heat dissipation, anti-fog and anti-condensation;

6, can integrate license plate, car number, box number and other recognition, and can support multiple brands of car under, license plate and other acquisition camera access, easy system integration;

7, can collect the panoramic view of the security lane and the roof, the two sides of the car and the chassis of the multi-channel video, can be intelligent photo and associated save;

8, can integrate security personnel information and vehicle detection and evaluation information and associated record query; It can enable cooperative work such as abnormal alarm linkage sound and light alarm after intelligent judgment;

9. Multiple lanes can be integrated display and upload to the central management platform;

10, can run under domestic operating system, embedded system environment;

11, support multi-language interface switching.

特色優勢：

1、車輛多側面同時高清全幅完整掃描成像，并同步高清多視角全景監控視頻存檔留證；

2、電動滑軌同步伴隨移動各個車輛側面的圖像采集相機勻速圖像采集，確保掃描圖像完整、清晰

Characteristic advantage：

1, the vehicle multi-side simultaneously high-definition full width complete scanning imaging, and synchronous high-definition multi-view panoramic surveillance video archive retention;

 2. The electric slide is synchronized with the image acquisition camera on the side of each vehicle for uniform image acquisition to ensure that the scanned image is complete and clear.

產品功能：

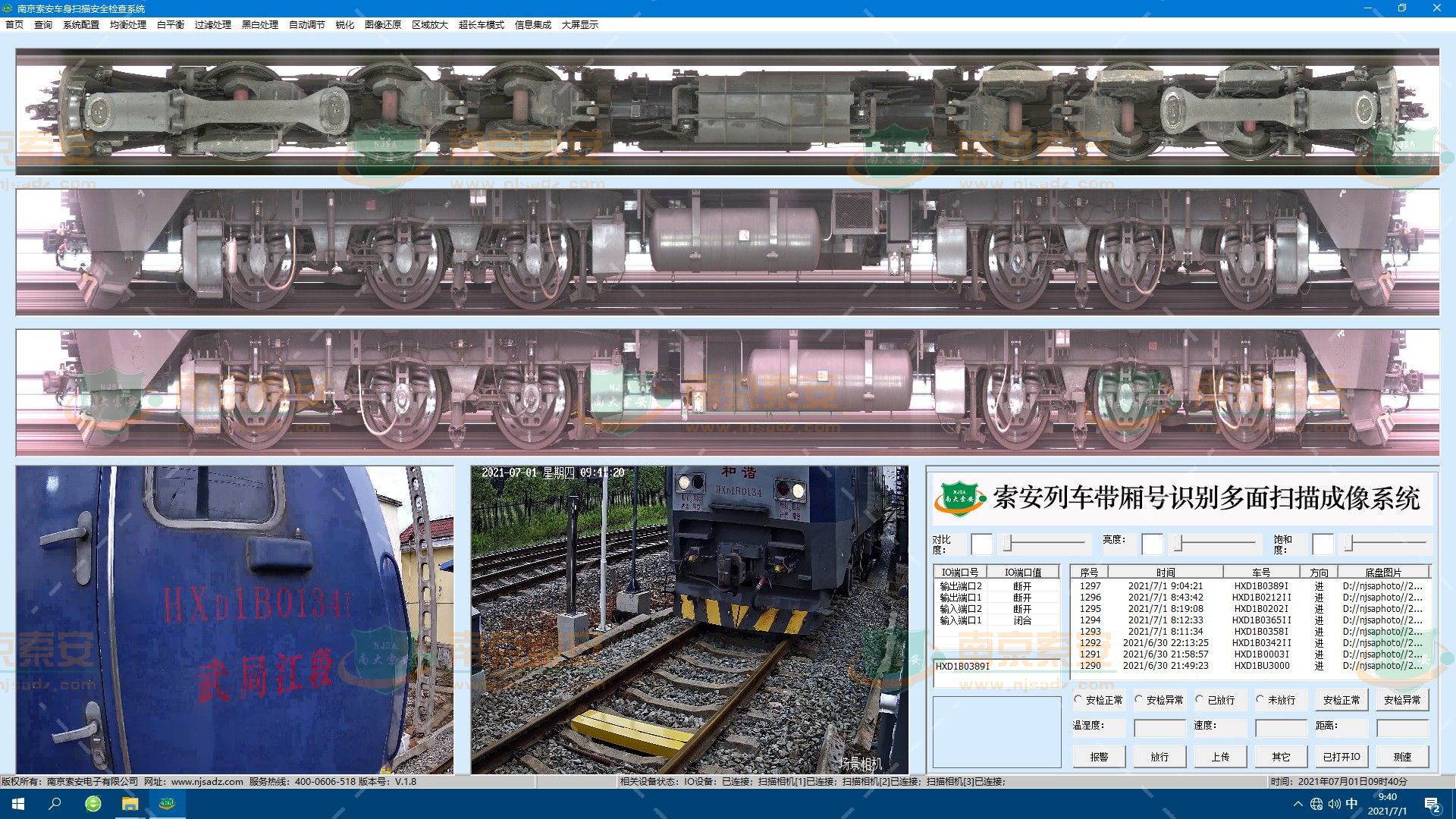

高清實時監測

a、高清全彩:分辨率在8000X2048以上,彩色圖像，可清晰辨別1cm2的物體;

b、全天候:不受雨、雪、嚴寒、酷熱等惡劣天氣影響,可24小時穩定運行:

c、響應快:一列編組50節的貨車，3min即可完成機檢:d.運行穩定:全國已銷售600余套,設備日平均故障時間<5min,運維服務響應時間<1小時;

e、操作方便:

①自動控制播放速度;

②支持局部放大、縮小,顯示精度1mm;

③車號信息、車輛信息、貨物信息精確匹配

④準確分割車廂實現一車一圖;

⑤基于車號、日期、故障報警等綜合查詢:

⑥過車圖像回放,過車記錄存儲3個月以上。隱患自動報警

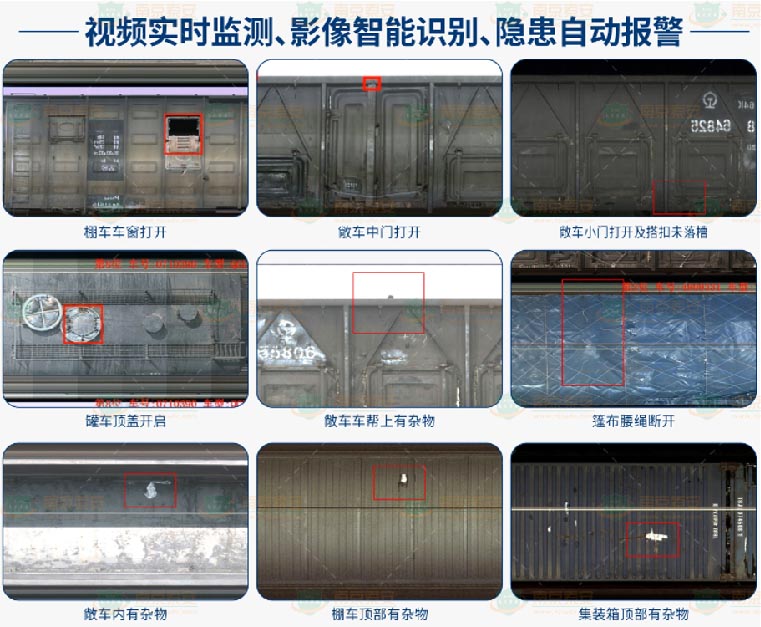

自動自動提示:檢測到安全隱患后，系統自動使用紅框在隱忠位置精確標注,并進行語音報警示。

安全智能卡控:報警后，系統強制可要求人員子以確認，防止人為原因?qū)е碌穆z。

Product Features：

High-definition real-time monitoring

a, high-definition full-color: resolution of 8000X2048 or more, color images, can clearly identify 1cm 2 of the object.

b, all-weather: not subject to rain, snow, cold, heat and other inclement weather, can be 24 hours of stable operation.

c. Fast response: a train of 50 wagons, 3min can be completed machine inspection.

d. Stable operation: more than 600 sets have been sold nationwide, the average daily downtime of the equipment <5min, O&M service response time <1 hour.

e. Convenient operation.

① automatic control of playback speed; ② support for local zoom in and zoom out

② support for local zoom in and zoom out, display accuracy of 1mm; ③ vehicle number information, vehicle information

③Accurate matching of vehicle number information, vehicle information and cargo information.

④Accurately divide the car to realize one car one map; ⑤Based on the car number, date, cargo information, and the date of the car.

⑤Based on the vehicle number, date, fault alarm and other comprehensive query.

⑥Passing vehicle image playback, passing vehicle record storage for more than 3 months. Hidden Danger Automatic Alarm

Automatic Alert: After detecting the hidden danger, the system will automatically use the red box to precisely mark the hidden location and give a voice alarm.

Safe smart card control: after the alarm, the system mandatory personnel can be required to confirm the sub to prevent human causes caused by the omission of inspection.

“鐵路貨車車號智能識別系統"是一款自動識別車輛信息及屬性的智能化系統。其主要運用圖像采集技術、智能識別技術，實現了對車輛車號、載重、自重、容積、換長等基礎信息的智能識別，同時具備豐富的數據接口和完整的信息管理功能，全程自動開啟、實時監測、智能記錄,無需人工輔助,系統具有識別精度高運算快、信息準確等特點,廣泛應用于貨站、編組站、專用線，也可以為軌道等設備提供信息接口。

產品功能:車輛信息識別可識別車號、載重、自重、容積、換長等信息的精準識別。

計軸判輛：支持自動計軸,判斷車輛數量,結合車輛圖片,避免車號誤匹配或漏車。

設備自動開啟：車輛經過來車啟動模塊,系統自動開啟,節約能源,全程無需人工干預。

提供對外接口：可提供車輛信息接口，供第三方軟件調用。

支持多種車型：適用于敞車、棚車、罐車、板車等多種車型。

"Railroad Wagon Number Intelligent Identification System is an intelligent system that automatically identifies vehicle information and attributes. It mainly uses image acquisition technology and intelligent recognition technology to realize the intelligent recognition of basic information such as vehicle number, load, weight, volume, change length, etc. Meanwhile, it has rich data interfaces and complete information management functions, and the whole process of automatic opening, real-time monitoring, intelligent recording, without manual assistance, the system has the characteristics of high recognition accuracy, fast computing, and accurate information, and is widely used in freight stations, grouping stations, It can be widely used in cargo stations, grouping stations, special lines, and can also provide information interface for rail and other equipments.

Function:Vehicle information recognition can recognize vehicle number, load, weight, volume, change length and other information accurately.

Axle counting: support automatic axle counting, determine the number of vehicles, combined with vehicle pictures, to avoid mis-matching of vehicle numbers or missing vehicles.

Automatic opening of equipment: the system automatically opens when the vehicle passes the oncoming vehicle start module, saving energy and eliminating the need for manual intervention.

Provide external interface: provide vehicle information interface for third-party software to call.

Support multiple vehicle types: applicable to open trucks, shed trucks, tank trucks, panel trucks and other types of vehicles.
